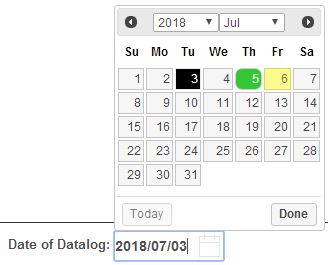

* Click on calendar in the bottom left corner to get the chart of data log, and to get the data list of data log in "Data Log" tab for the specified day.

Black background date: The date currently selected
Green background date: The date with data log.
Yellow background date: The date is today.
Gray background date: The date without data log.

* This page is a UPS data log. It records UPS Input Voltage/Output Voltage/ Frequency/ Loading/Capacity/ Temperature. Logs can be saved in CSV format by clicking on "Save".

Data logs are stored daily. When reserved storage is full, new logs automatically overwrite the oldest daily files. The parameters shown here may differ based on the protocol used.
No.	This is the number of data log on the specified day.
Tarih/Saat	This is a record of the Date (yyyy/mm/dd) and Time (hh:mm:ss) that the data was recorded. The interval between every log can be set in /Configuration/ UPS configuration/ Test Log/UPS Recorder/.
Giris Gerilimi (V)	This section shows records of the UPS Input voltage readings.
Çikis Gerilimi (V)	This section shows records of the UPS Output voltage readings.
Frekans (Hz)	This section shows records of the UPS Input Frequency.
Yük (%)	This section shows records of the UPS Output loading.
Kapasite (%)	This section shows records of the UPS battery capacity.
Akü Gerilimi(V)	This section shows records of the UPS battery voltage.
Cell Volt.(V)	This section shows records of the UPS cell voltage.
Sicaklik(°C °F)	This section shows records of the UPS internal temperature.
Env. Temp.(°C °F)	This section shows records of NetFeeler temperature. (if NetFeeler is connected)
Env. Humidity	This section shows records of NetFeeler humidity. (if NetFeeler is connected)

This section is to show the Maximum, Minimum, Average, Variance and Standard Deviation calculated by NetAgent for each item of Data Log.
